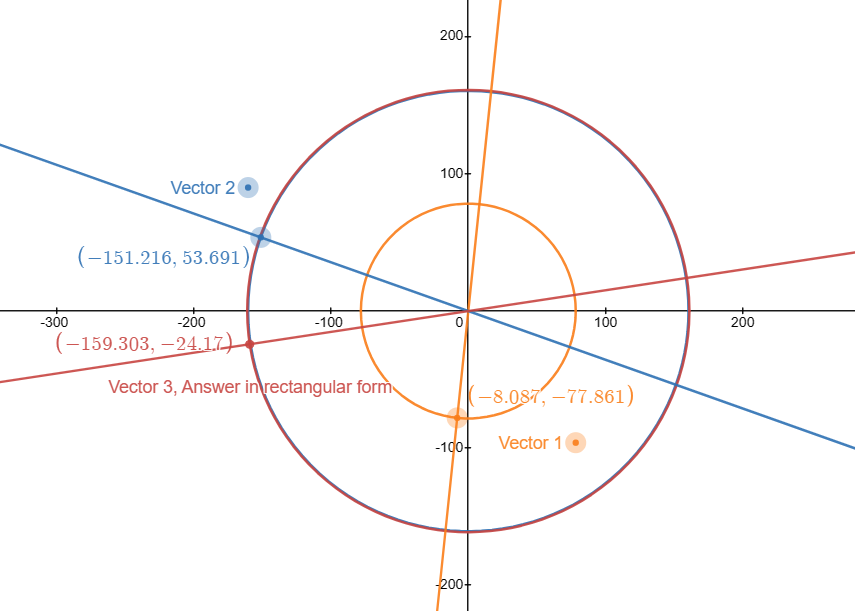

Vector 1 (orange color) added to Vector 2 (blue color)
Using complex number addition the resultant is Vector 3 (red color)

Step 1: Add the x-coordinate of vector 1 and vector 2 = vector 3 ( x-coordinate)
Step 2: Add the y-coordinate of vector 1 and vector 2 = vector 3 (y-coordinate)

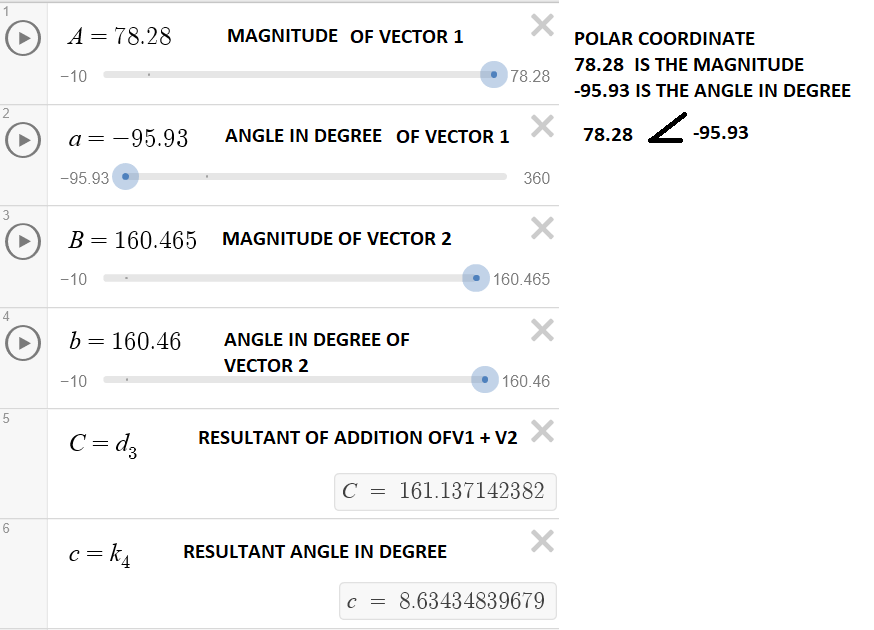

To edit click the image.

Note: Letter A, B, and C are the values of vectors magnitude
letter a, b, and c are the corresponding angles in degree notation.

Initial condition:

Magnitude A = 78.28
angle are a = -95.93 deg;

Magnitude B = 160.465
angle are b = 160.46 deg;




The resultant answer in polar form 161 ∠ 189°

By Sam Ortega, Created with Desmos Graphing

Using Copilot Gen AI

Add two vectors in polar form. 78.28 angle -95.93 degree + 160.465 angle 160.46

Copilot answer is good enough. Just few numbers off. The procedural step by step reasoning is valid.
To add polar vectors, we convert each to rectangular form, add x component and y component, then convert back to polar.

Given two vectors in polar form.
A = 78.28 ∠ -95.93°
B = 160.465 ∠ 160.46°

Aₓ = 78.28 cos(-95.93°) ≈ -7.68
Hallucination but good enough: correct answer is -8.087

Aᵧ = 78.28 sin(-95.93°) ≈ -77.90
correct answer is -77.861

Bₓ = 160.465 cos(160.46°) ≈ -151.02
correct answer is -151.216

Bᵧ = 160.465 sin(160.46°) ≈ 52.07
Hallucination but good enough: correct answer is 53.691

Cₓ = Aₓ + Bₓ = -7.68 + (-151.02) = -158.70
Hallucination but good enough: correct answer is -159.303

Cᵧ = Aᵧ + Bᵧ = -77.90 + 52.07 = -25.83
Hallucination but good enough: correct answer is -24.17

|C| = √(Cₓ² + Cᵧ²) ≈ √(158.70² + 25.83²) ≈ 160.8
θ = tan⁻¹(Cᵧ / Cₓ) ≈ tan⁻¹(−25.83 / −158.70) ≈ 9.25°
θ (Quadrant III) = 9.25° + 180° ≈ 189.3°

Resultant: C ≈ 160.8 ∠ 189.3°

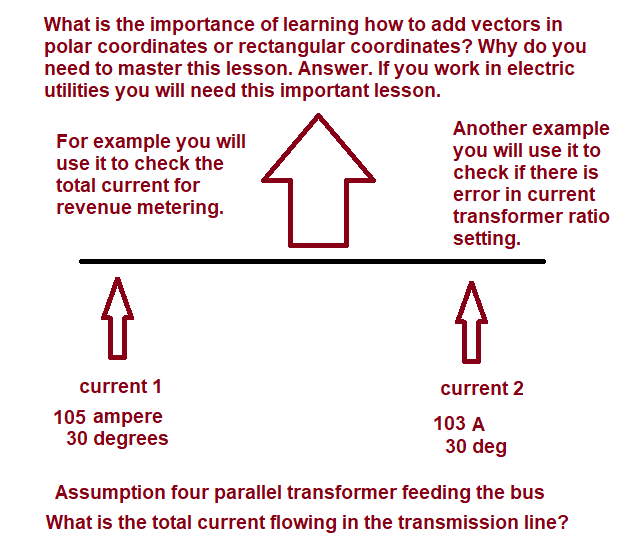

Practice given A= 105 ∠ 30°
and B = 103 ∠ 30°
What is the resultant vector?

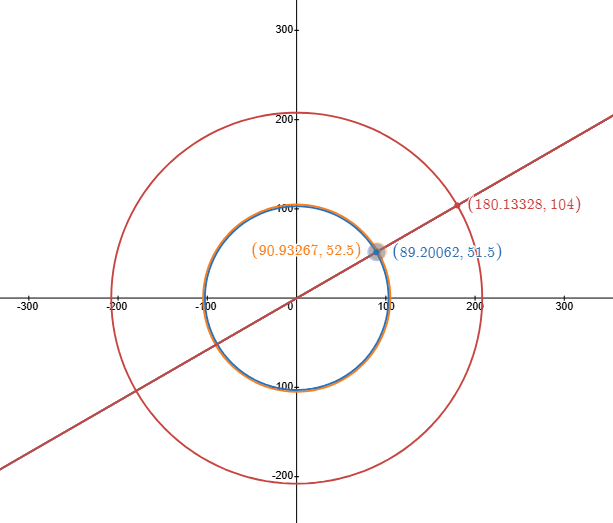

To edit go to the lower right hand corner then click the link.
A= 105 a =30
B = 103 b = 30

Answer C= 208 ∠ 30° in polar form or phasor notation.

✅ Vector addition is typically taught in U.S. high school — usually between grades 9–12.

Most students first encounter simple, graphical vector addition around 9th grade in physical science or geometry. Full vector addition — using components, magnitude, and direction — is taught later in physics or pre‑calculus, usually between 10th and 12th grade.

✅ Vector addition is typically taught in U.S. high school — usually between grades 9–12.

According to high‑school physics curriculum materials and CK‑12’s Physics Flexbook for high school, students learn vector addition as part of their physics coursework. Educational resources like Wayground/Quizizz also classify vector‑addition practice within grades 9–12, often centered around 12th‑grade math or physics.

In practice:
• 9th grade — students first see simple, graphical vector addition (head‑to‑tail).
• 10th–12th grade — students learn full vector addition using components, magnitude, and direction in physics or pre‑calculus.
